Description
Product details

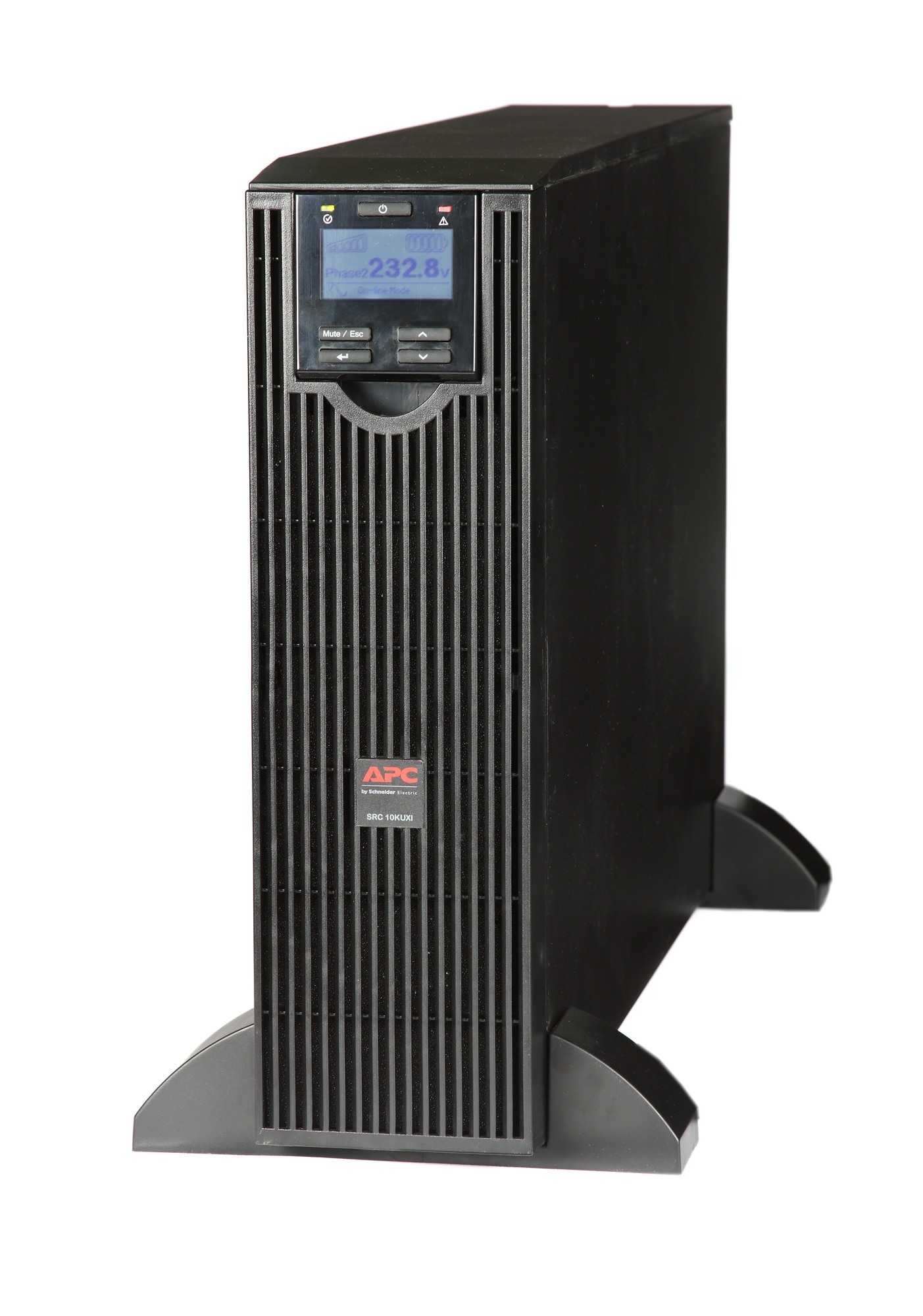

Brand: APC Product Type: UPS Model: SRC10KUXI Output: Output Power Capacity 9.0kWatts / 10.0kVA Max Configurable Power (Watts): 9.0kWatts / 10.0kVA Nominal Output Voltage: 230V Efficiency At Full Load: 94.4 % Output Voltage Distortion: Less than 2 % Output Frequency (Sync To Mains): 47 - 53 Hz For 50 Hz nominal Sync to mains, 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronized, 50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 3 Hz Sync to mains, 60 Hz +/- 0.1 % For 60 Hz nominal Unsynchronized Other Output Voltages : 220 V, 240 V Load Crest Factor : 3 : 1 Topology :Double conversion online Waveform Type: Sine wave Overload Operation: 60 seconds at 125% and 30 seconds at 150% Output Connections: (1) Hard wire 3-wire (H N + E) Output Voltage Thd: < 2% for 0 to 100% linear load and < 5% for full non-linear load Output Voltage Tolerance: +/- 1% static and +/- 5% at 100% load step Bypass: Built-in static bypass Input: Nominal Input Voltage 230V Input Frequency : 40 - 70 Hz Auto-sensing Input Connections: Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E) Input: Input Voltage Range For Main Operations : 160 - 285V Efficiency At Full Load :94.4 % Input Power Factor At Full Load: 0.98 Batteries & Runtime Battery Type :External battery system Typical Recharge Time :5hour(s) Communications & Management Interface Port(S): RJ-45 Serial, USB Emergency Power Off (EPO) : Yes Available Smart slot Interface Quantity: 1 Environmental: Operating Temperature : 0 - 40 °C Operating Relative Humidity : 0 - 95 (Non-condensing) % Operating Elevation : 0 - 3048meters Storage Temperature : -10 - 60 °C Storage Relative Humidity : 0 - 95 (Non-condensing) % Storage Elevation : 0 - 15240meters Environmental Audible Noise At 1 Meter From Surface Of Unit : 58.0dBA Protection Class : IP20 Physical : Maximum Height : 433MM,43.3CM Maximum Width :134MM,13.4CM Maximum Depth : 706MM,70.6CM Net Weight : 27.5KG Warranty : As Per Manufacturer Terms and Condition
